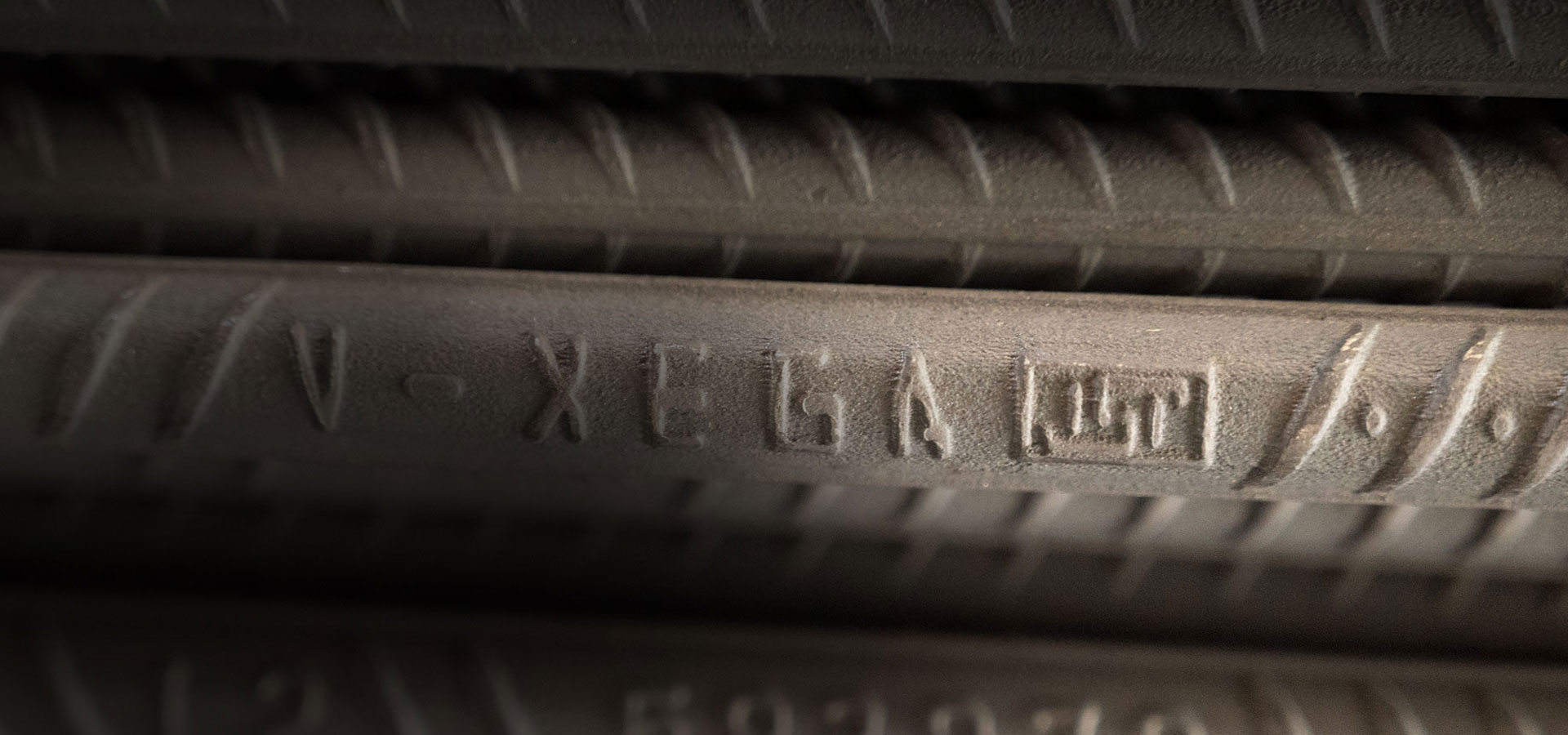

V-Xega TMT Bar

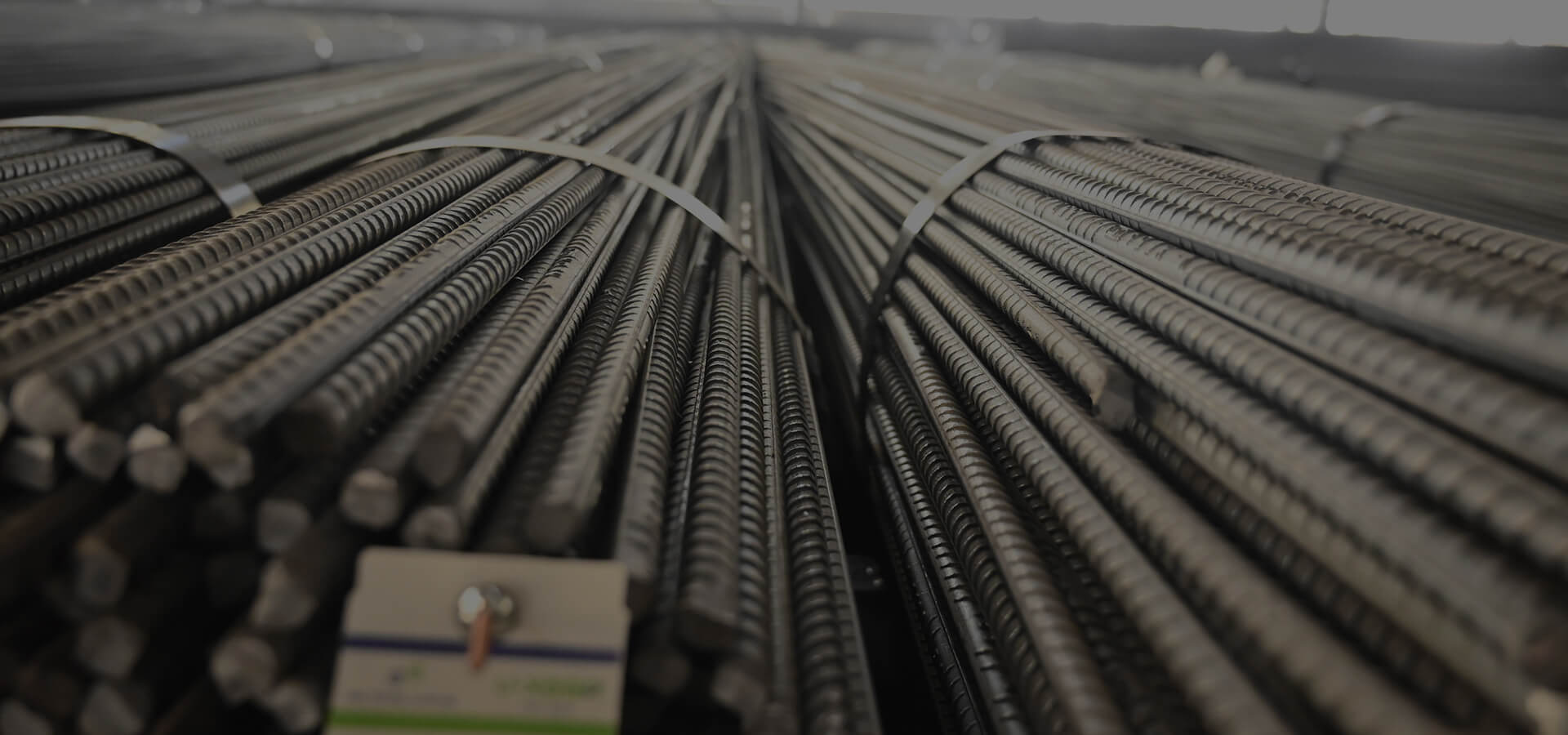

V-XEGA - SUPERIOR QUALITY TMT BAR.

TMT bars are produced by a single process comprising of work hardening and heat treatment, and are widely used in construction. The V-XEGA TMT bars are manufactured in grades- Fe500D, Fe550D, Fe500D CRS and Fe550D CRS as per the IS 1786:2008 standard, with carbon and carbon equivalent levels kept to a lower level than specified to attain better properties. The TS/YS ratio and elongation at maximum force are much higher compared to the IS Standard. These two properties are essential for any earthquake variety of TMT bar.
DOWNLOAD BROCHURE SHOP NOW

ADVANTAGES.

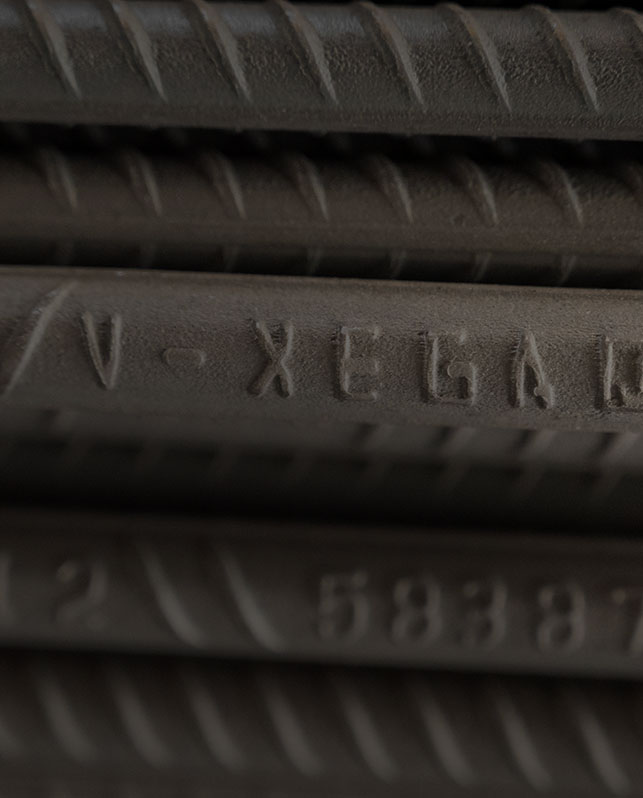

  • Superior corrosion resistance and rib pattern
  • Superior strength and high ductility
  • Resistance to ageing
  • Excellent bendability and workability
  • High seismic property and fire resistance property
  • Higher Fatigue Strength

APPLICATION AREA.

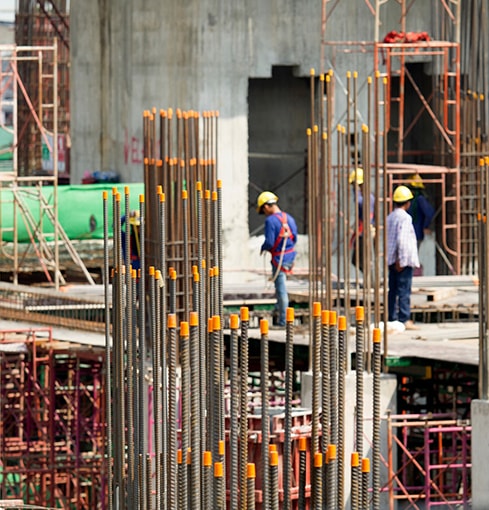

  • Individual Buildings Tmt Bars

    Individual Housing builders

  • Infrastructure Tmt Bars

    Infrastructure

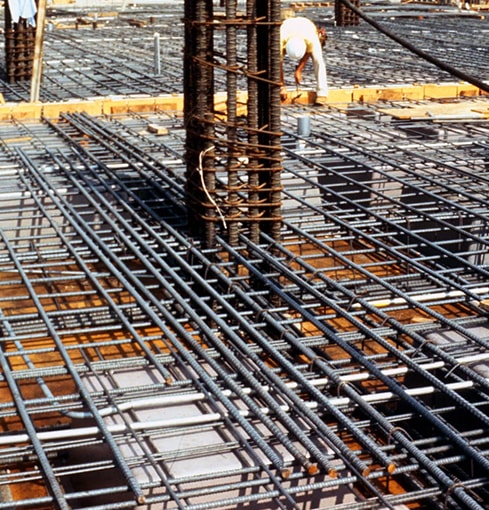

  • Reinforcement Sructures Tmt Bars

    Reinforcement structures

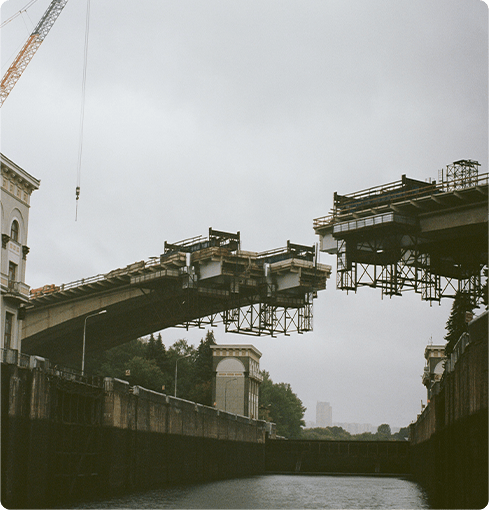

  • TMT Bars Bridges

    Bridges

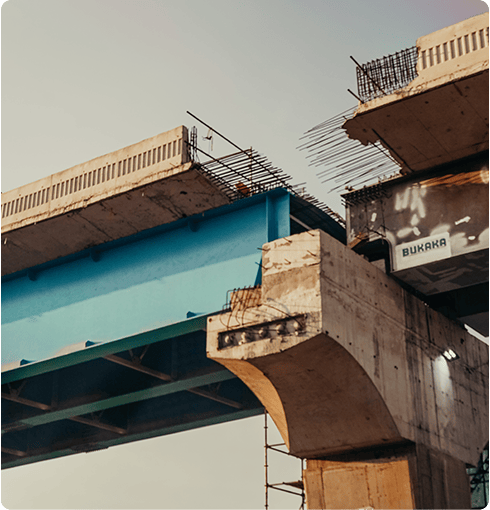

  • TMT Bars Flyovers

    Flyovers

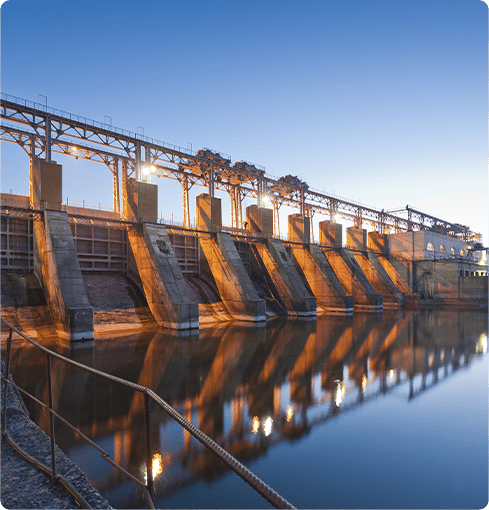

  • TMT Bars Dams

    Dams

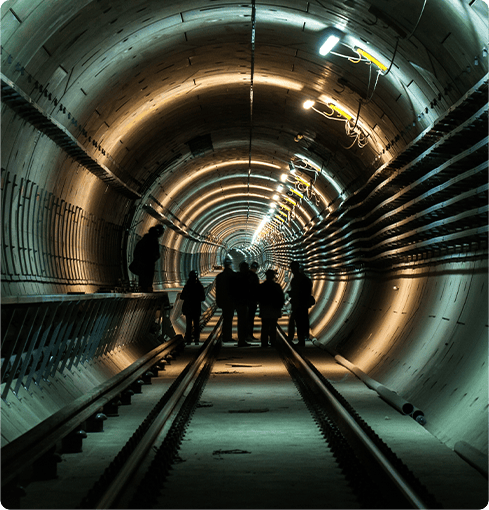

  • TMT Bars Inderground Structure

    Underground structures

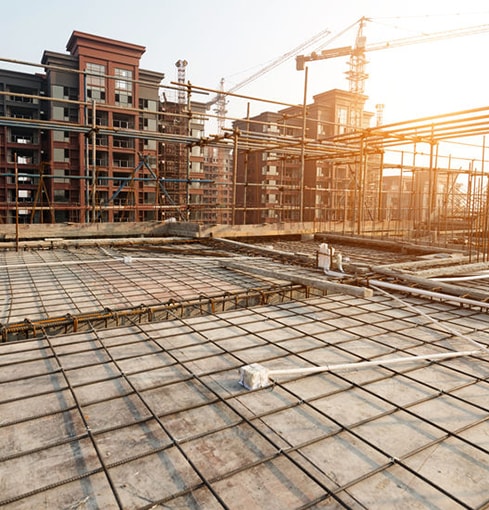

  • TMT Bars Real Estate

    Real Estate

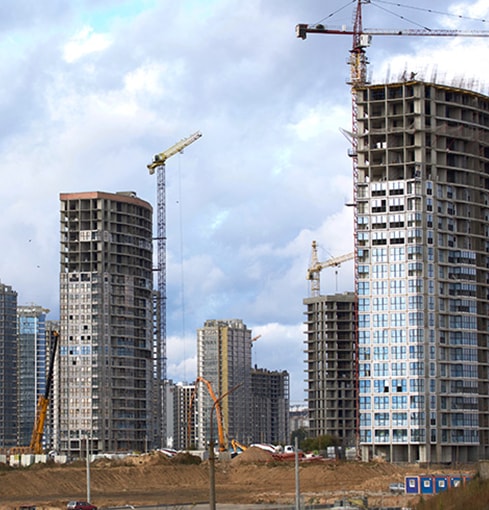

  • TMT Bars High Rise Buildings

    High-rise buildings

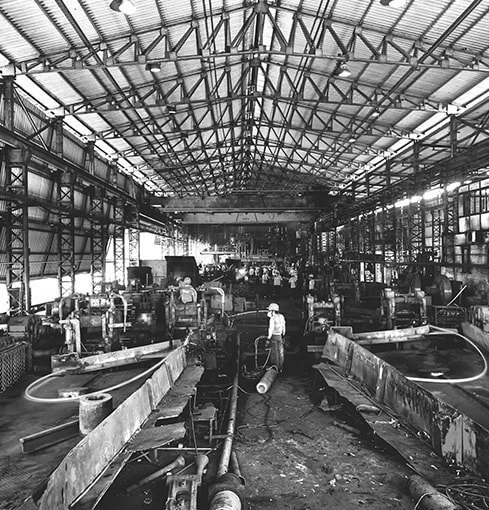

  • TMT Bars Industrial Structure

    Industrial structures

TECHNICAL SPECIFICATION.

Sectional Weight
DIA [mm] Nominal Weight (Kg/metre)
8 0.395
10 0.617
12 0.888
16 1.580
20 2.470
25 3.850
32 6.313
36 7.990
40 9.860
IS 1786-2008 Specifications V-Xega TMT Rebars
Sizes Positive Tolerances Negative Tolerances Positive Tolerances Negative Tolerances
8, 10 mm + 7 % - 7 % 0 % - 6 %
12, 16 mm + 5 % - 5 % 0 % - 4 %
20 to 40 mm + 3 % - 3 % 0 % - 3 %
ELEMENT IS 1786-2008 Fe 500 IS 1786-2008 Fe 500 D IS 1786-2008 Fe 550 D UK BS 4449/2005 500 B UK BS 4449/2005 500 C Aus/NZ 500 E Aus/NZ 500 N ESL FE 500 D ESL FE 550 D ESL FE 500 D CRS ESL FE 550 D CRS
% C max 0.30 0.25 0.25 0.22 0.22 0.22 0.22 0.25 0.25 0.15 0.15
% S max 0.055 0.040 0.040 0.050 0.050 0.050 0.050 0.040 0.040 0.040 0.040
% P max 0.055 0.040 0.040 0.050 0.050 0.050 0.050 0.040 0.040 0.080 0.080
% (S+P) max 0.105 0.075 0.075 N.S N.S N.S N.S 0.075 0.075 0.12 0.12
CE max Not Defined 0.50 0.61 0.50 0.50 0.44 0.49 0.42 0.42 0.42 0.42
% (Cr+Cu+P) - - - - - - - - - 0.50 min 0.50 min
ELEMENTS V-Xega 550 D IS 1786-2008 Specifications
Carbon (%) : 0 . 23 Max 0 . 25 Max
Sulphur (%) : 0 . 035 Max 0 . 040 Max
Phosphorous (%) : 0 . 035 Max 0 . 040 Max
Carbon Equivalent (%) : 0 . 38 Max 0 . 61 Max
Sulphur + Phosphorous : 0 . 7 Max 0 . 075 Max
ELEMENT IS 1786-2008 Fe 500 IS 1786-2008 Fe 500 D IS 1786-2008 Fe 550 D UK BS 4449/2005 500 B UK BS 4449/2005 500 C Aus/NZ 500 E Aus/NZ 500 N ESL FE 500 D ESL FE 550 D ESL FE 500 D CRS ESL FE 550 D CRS
YS [ N/mm²] 500 min 500 min 500 min 500-650 500-650 500-600 500-650 530 min 580 min 530 min 580 min
TS [N/mm²] 545 min 565 min 600 min N.S N.S N.S N.S 600 min 640 min 600 min 640 min
TS/YS min 1.08 1.10 1.08 1.15-1.35 1.15-1.40 1.08 1.10 1.10 1.10 1.10 1.10
% Elongation min 12 16 14.5 N.S N.S N.S 16 16 16 16 16
% Uniform elongation at max stress, min N.S 5 5 5 7.5 10 5 5 5 5 5
Application General Seismic Seismic General Seismic Seismic General Seismic Seismic Seismic Seismic
MECHANICAL PROPERTIES V-XEGA 550 D
Yield Strength (N/mm2) 580 Min
Tensile Strength (N/mm2) 640 Min
Elongation (%) 16% Min
Ratio of Tensile Strength to Yield Strength 1.10 Min

Price List.

Section Recommended Consumer Price [Per Piece]
08mm Rs.393
10mm RS.600
12mm Rs.853
16mm Rs.1515
20mm Rs.2368
25mm RS.3701
28mm Rs.4631
32mm Rs.6050
